Mitsubishi 10.4Inch Industrial Lcd Model AA104XD12 1024X768P 123PPI 1000cd/M2 20PIN 3.3V outdoor high brightness lcd panel

Markenbezeichnung:	Mitsubishi
Modellnummer:	AA104XD12
MOQ:	10pcs
Preis:	negotiable

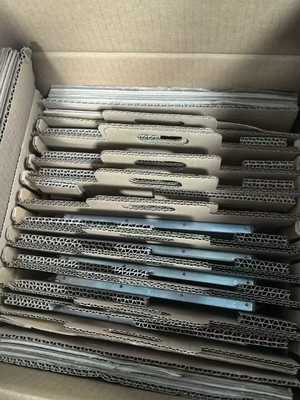

Verpackungsdetails:	Industrieverpackung
Zahlungsbedingungen:	T/T, W, Western Union, Moneygram

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

CHINA

Zertifizierung:

Rohs,CE,FCC

Qualität:

Brandneues Original

Paket:

Original Industrieverpackung

Auflösung:

1024*768pixels

Stil:

20PIN IPS

Helligkeit:

1000cd/m2

Farbe:

16,7 m

Kontrastverhältnis:

700: 1

Arbeitsleben:

100 000 Stunden

Größe:

10.4inch

Lampentyp:

Verblüfft

Stromspannung:

3.3 V

Versorgungsmaterial-Fähigkeit:

3000 Prozent pro Woche

Beschreibung des Produkts

Mitsubishi 10.4Inch Industrial Lcd Model AA104XD12 1024X768P 123PPI 1000cd/M2 20PIN 3.3V outdoor high brightness lcd panel

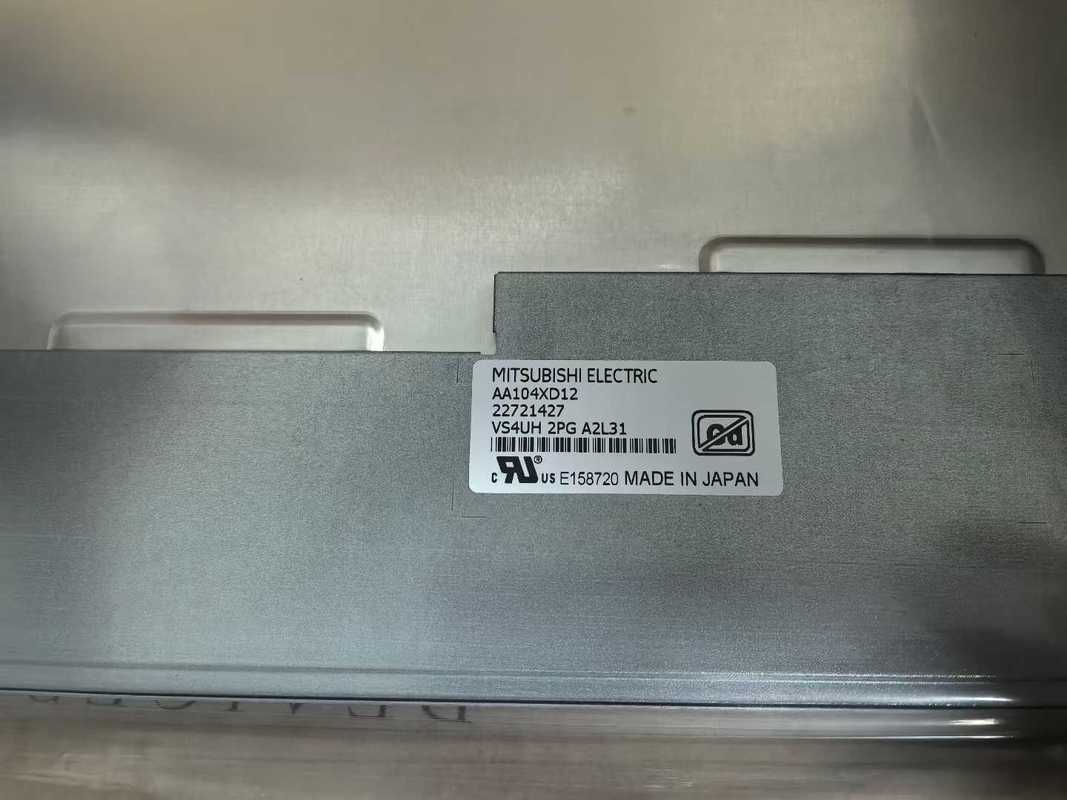

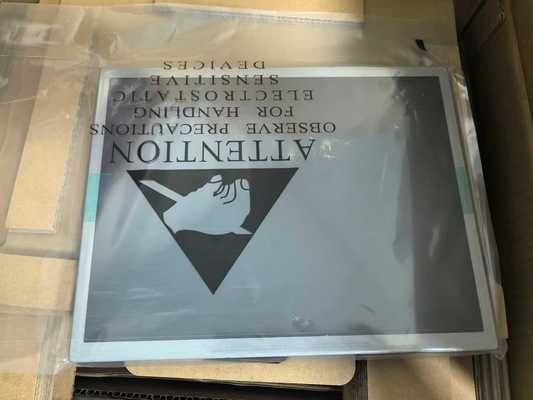

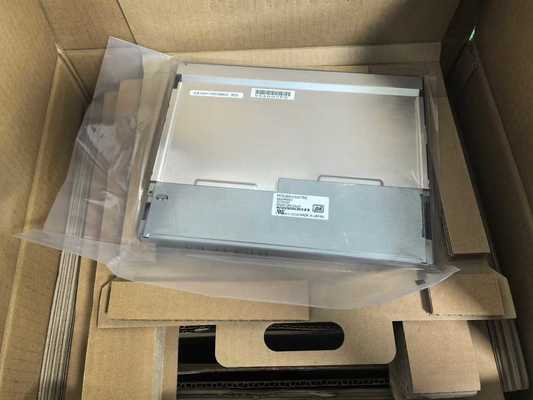

The AA104XD12 (Alias: T-55533D104J-LW-A-ABN) is a 10.4 inch diagonal a-Si TFT-LCD display panel product from Mitsubishi Electric Corporation (hereafter called Mitsubishi), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized by Einklcd in the following: Wide Temperature, Ultra High Brightness, Lamp Repaceable, WLED Backlight, Life ≥ 100K hours, 180° Reverse, 6/8 bit, Matte , NCM. Based on its features, Einklcd recommend that this model be applied to Industrial, Outdoor High Brightness etc. According to the information stored in Einklcd this model mass production on Q1, 2009, Now this model is discontinued. We inputted this model's specification on Mar 26 2013 for the first time, and the latest update on Dec 3 2020. If you want to embed AA104XD12 LCM in your future product, Einklcd strongly recommend that you should contact with Mitsubishi or it's agent to learn lateast production and specification detail. The AA104XD12 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand:Mitsubishi

Model P/N:AA104XD12

Compatible Model 1 Compatible

Diagonal Size:10.4"

Panel Type: a-Si TFT-LCD, LCM

Resolution 1024(RGB)×768, XGA 123PPI Pixel

Format RGB Vertical Stripe

Active Area 210.4(W)×157.8(H) mm

Bezel Opening 215.4(W)×161.8(H) mm

Outline(mm): 230(W)×180.2(H)×11(D)

Luminance: 1000 (Typ.)(cd/m²)

Viewing Angle: 80/80/65/65 (Typ.)(CR≥10) Left / Right / Up / Down

Good View at 6 o'clock

Color Depth:262K/16.7M 40% NTSC

Mass: 520g (Typ.)

Refresh Rate: 60Hz

120Hz (60HZ Input) : Embedded MEMC Circuit

120Hz+120Hz : 120Hz Panel+120Hz Backlight

240Hz (60HZ Input) : Embedded MEMC Circuit

Treatment: Antiglare, Hard coating (3H)

Contrast Ratio:700 : 1 (Typ.) (TM)

Work Mode: TN, Normally White, Transmissive

Response:4/12 (Typ.)(Tr/Td) ms

IPS Family: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich

VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA

Backlight: 4 strings WLED , 100K hours , No Driver

Used for : Industrial Outdoor High Brightness

Touchscreen: Wihtout

Signal Type LVDS (1 ch, 6/8-bit) , 20 pins Connector

Voltage Supply:3.3V (Typ.)

Max. Ratings Storage Temp.: -30 ~ 80 °C

Operating Temp.: -30 ~ 80 °C
