Einzelheiten zu den Produkten

Zu Hause Produits

LG 6.5Inch Car LCD Display Panel with 925 cd/m² High Brightness 800*480 Pixels Resolution and 40PIN Connector

LG 6.5Inch Car LCD Display Panel with 925 cd/m² High Brightness 800*480 Pixels Resolution and 40PIN Connector

Markenbezeichnung:	Hannstar
Modellnummer:	HSD103KPW2-A10
MOQ:	10 Stück
Preis:	negotiable
Zahlungsbedingungen:	T/T, W, Western Union, MoneyGram
Lieferfähigkeit:	3000 Prozent pro Woche

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

China

Zertifizierung:

Rohs,CE,FCC

Qualität:

Brandneues Original

Paket:

Originale Industrieverpackung

Material:

Glas

Helligkeit:

925ccd/m2

Auflösung:

800*480pixels

Kontrastverhältnis:

1000:1

Farbe:

16,7 Mio

Arbeitsleben:

20k Stunden

Stecker:

40P

Touchpanel:

ohne

Arbeitsspannung:

3,3 V

Verpackung Informationen:

Industrieverpackung

Hervorheben:

925 cd/m² High Brightness Car LCD Display

800*480 Pixels Resolution LCD Display Panel

40PIN Connector TFT-LCD Display

Beschreibung des Produkts

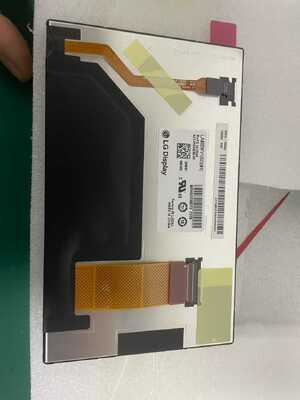

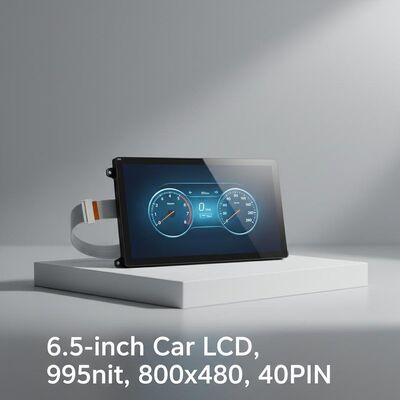

LG 6.5-Inch Car LCD Display Panel

Model: LA065WV1-SD01 (Alias: LA065WV1 (SD)(01))

Product Overview

This 6.5-inch diagonal a-Si TFT-LCD display panel from LG Display features an integrated WLED backlight system and is designed for automotive applications. The panel operates in extreme temperature conditions from -40°C to 85°C and withstands vibration levels up to 3.0G (29.4 m/s²).

Key Features

High brightness: 925 cd/m² (Typical)
Wide viewing angles: 89/89/89/89 (CR≥10)
IPS technology with normally black display
sRGB color gamut with 86% NTSC coverage
Wide temperature operation range
Hard coating surface (3H hardness)

Technical Specifications

Diagonal Size	6.5 inches
Resolution	800(RGB)*480 (WVGA), 143 PPI
Active Area	141.6(W) * 84.96(H) mm
Outline Dimensions	158(W) * 98.6(H) * 11.7(D) mm
Contrast Ratio	1000:1 (Typical)
Response Time	30ms (Max., Tr+Td)
Display Colors	16.7 million
Backlight	8S3P WLED, 10,000 hours lifetime
Signal Interface	Parallel RGB (1 channel, 6-bit), 40-pin FPC
Input Voltage	3.3V (Typical)
Operating Temperature	-40°C to 85°C
Storage Temperature	-40°C to 95°C
Panel Weight	155g (Typical) / 165g (Maximum)

Application

Primary application: Automotive Display Systems

Important Note: This model entered mass production in Q4 2014 and is now discontinued. For current production status and latest specifications, please contact LG Display or their authorized agents directly. The information provided here is for reference only and should not be used as the sole basis for decision-making.
